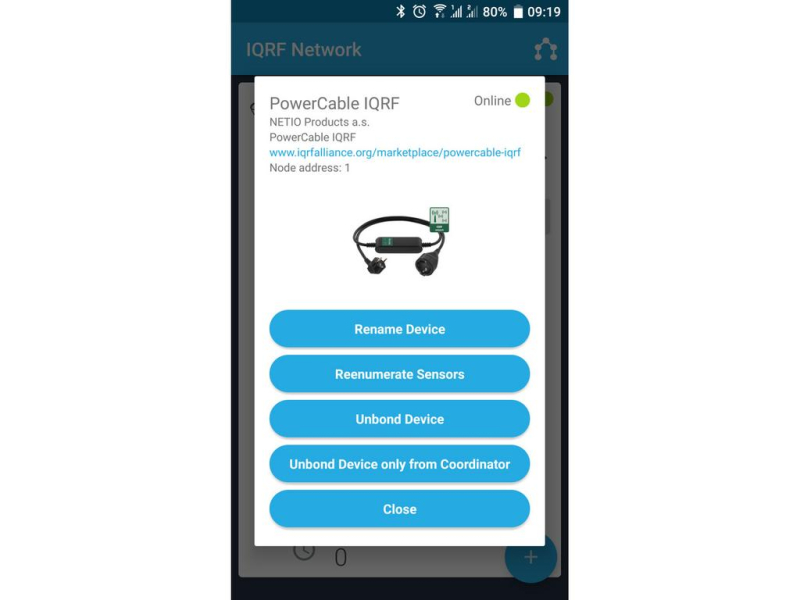

Using the Smart connect function, PowerCable IQRF can be connected to the IQRF wireless network. The DPA protocol can be used to control the output or read the measurements (V, A, kWh, W, Hz, TruePF). PowerCable IQRF is constantly powered, so it also acts as a message repeater in the IQRF MESH network.
PowerCable IQRF 901x supports IQMESH functions of the IQRF wireless network. The device supports the “IQRF Interoperable” DPA standard for sensors and I/O devices.
The IQRF outlet supports IOC (Independent Output Control); output state is unaffected by firmware update. The PowerUp state function allows to specify the desired output state after power up (On / Off / Last). The Last option stores the last state of the output (on or off) before a power outage, and restores it when the power is restored.
An important feature for light industrial use is ZCS (Zero Current Switching). This feature ensures that the relay is switched when the current passes through zero level. PowerCable IQRF 901x can be used at ambient temperatures from -10 to +65°C.
Standard Binary Output
• IQRF peripheral 0x4B first output
Standard Sensor
• Consumption [kWh] - (iqrf sensors 0xA0, resolution 1 Wh)
• Current [A] - (iqrf sensors 0x07, resolution 0.001 A)
• Voltage [V] - (iqrf sensors 0x06, resolution 0.0625 V)
• Output power [W] - (iqrf sensors 0x08, resolution 0.25 W)
• TPF (True Power Factor) - (iqrf sensors 0x82, resolution 0.005)
• Frequency [Hz] - (iqrf sensors 0x09, resolution 0.001 Hz)
NETIO PowerCable IQRF 901x, a smart wireless power socket for lightweight industrial applications, is an ideal solution for remote control and metering of 230V power sockets outside electrical cabinets.
The outlet can be controlled over the wireless iqrf network from any other iqrf product using the DPA interface. PowerCable IQRF supports the control methods and formats of variables defined by the IQRF Alliance.
PowerCable IQRF 901x contains the standard TR-76D IQRF module and allows firmware upgrade over the wireless network. The output outlet state can be checked or written as a standard I/O for output no. 1.
Sensor values are read using standard IQRF Interoperable functions (see IQRF-StandardSensor-V015 documentation).
• IQRF network: Yes (internal antenna)
• Frequency: 868 MHz
• IQRF DPA compatible: Yes
• IQMESH: Yes
• FW upgrade: Yes (over IQRF network – handler repository)
• Control button: Yes
• Scheduler function: No
• IQRF Interoperable: Binary Output, Sensors, Smart connect
• IQRF module: TR-76DA, DPA 4.01 and higher, STD mode
• Power input: The “x” in the “901x” model number specifies the plug type
• Power output: The “x” in the “901x” model number specifies the socket type
• Available socket versions: DE, FR
• Internal consumption: Max 1.2 W
• Electrical measurements: Current [A] / Energy [kWh] / Input power [W], TruePF [-]), Frequency [Hz] / Voltage [V]
• Measurement accuracy: <1%
• SPD – surge protection: Yes, type 3
• IOC (output state independent on FW updates): Yes
• ZCS (zero-current output switching): Yes
• Default output state after powering up: On / Off / Last state
• Mechanical characteristics: Plastic housing – 180 x 40 x 30 mm + 2x 0.55m cable
• Protection: IP30
• Mechanical mounting: No
• Sound output: No
• Temperature range: -10 °C to +65 °C
