Two independent analog outputs 0-10 V
10 bit differenciation
two power outputs are automatically switched to the analog output voltage greater than 1 V (power fluorescent lamp ballasts)
10 bit differenciation
two power outputs are automatically switched to the analog output voltage greater than 1 V (power fluorescent lamp ballasts)

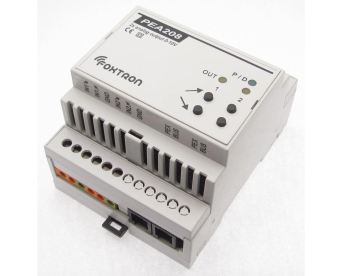

Analog outputs unit PEA208
PEA208 is two channel analog outputs 0-10V unit of Power Express (PEX) system. Differenciation of outputs is 10 bits.
Both channels are capable of consuming current up to 100mA (more than 100 fluorescent lamp ballasts).
PEA unit also includes two power outputs which are automatically switched when the analog output voltage is greater than 1V. This may be used to connect the supply voltage for fluorescent lamp ballasts.
In addition to controlling the bus PEX, outputs can be controlled by external inputs and buttons on the front panel of the unit.
The front panel is indicated by the status of each channel.
