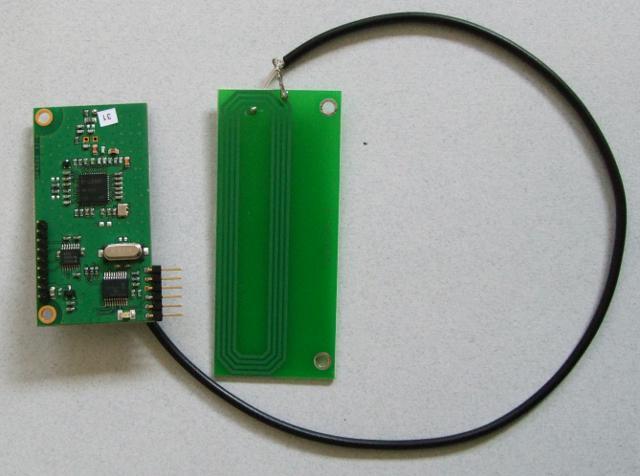

OEM LEGIC RFiD SM-4200 reader ISO & NFC compatible

RFiD reader/writer for short distance (aprox. 10cm depends on tag)
13,56MHz technology
RF standards: ISO 14443 A (Mifare and NFC)+B, ISO 15693, LEGIC RF, Sony Felica (NFC), Inside Contactless (NFC).
End-to-end security
Card based wake-up (ready-to-use)
Ultra low-power consumption
Small size
High data rates
RS232 interface
AES128/256, 3DES, DES, LEGIC std. encryption

Specification for OEM LEGIC SM-4200 Reader:

Producer: Q-Products Industrial Computers, Slovakia EU
Frequency: 13.56 MHz

Chip: Legic Advant SM-4200 multi-standard 13.56 MHz contactless smart card reader
Antena: external
Operating Distance: up to 10 cm, depending on tag
Host Interface RS232 9600/other upon req.
Power requirements: 4.5 – 5.5V DC
Current Consumption 100mA max.
Checksum: 8 bit LRC/16 bit CRC
RF Interface: ISO 14443 A (Mifare and NFC)+B, ISO 15693, LEGIC RF, Sony Felica (NFC), Inside Contactless (NFC).
Microprocessor: PIC onboard for data stream filtering/customization

Physical characteristic for OEM LEGIC Advant Reader:
Dimension (W x H): x mm

Environmental for OEM LEGIC Advant Reader:
Operating temp.: -20ºC to +85ºC
Storage temp.: -40ºC to +85ºC
